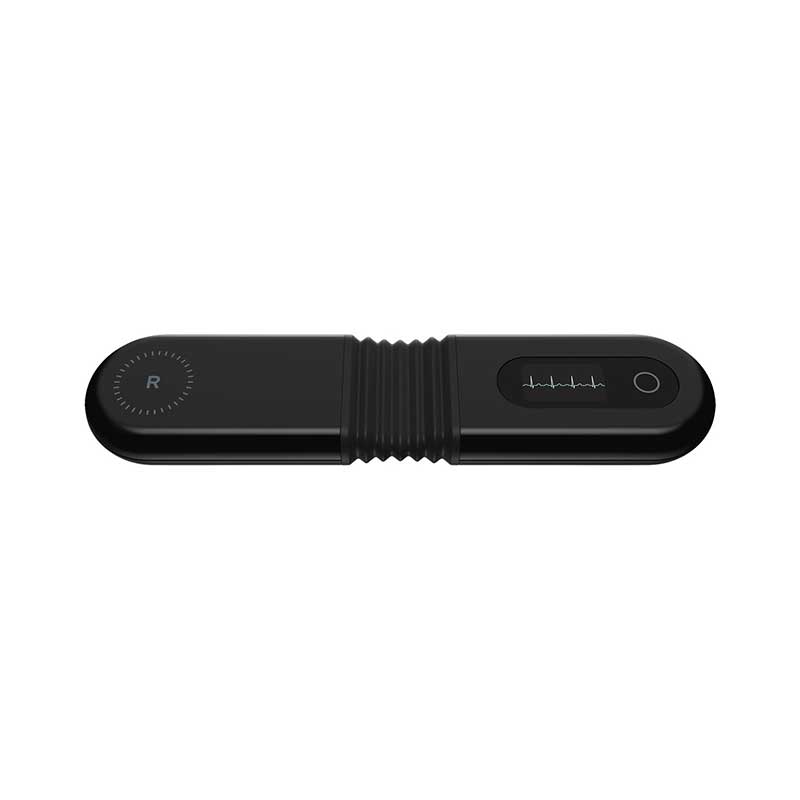

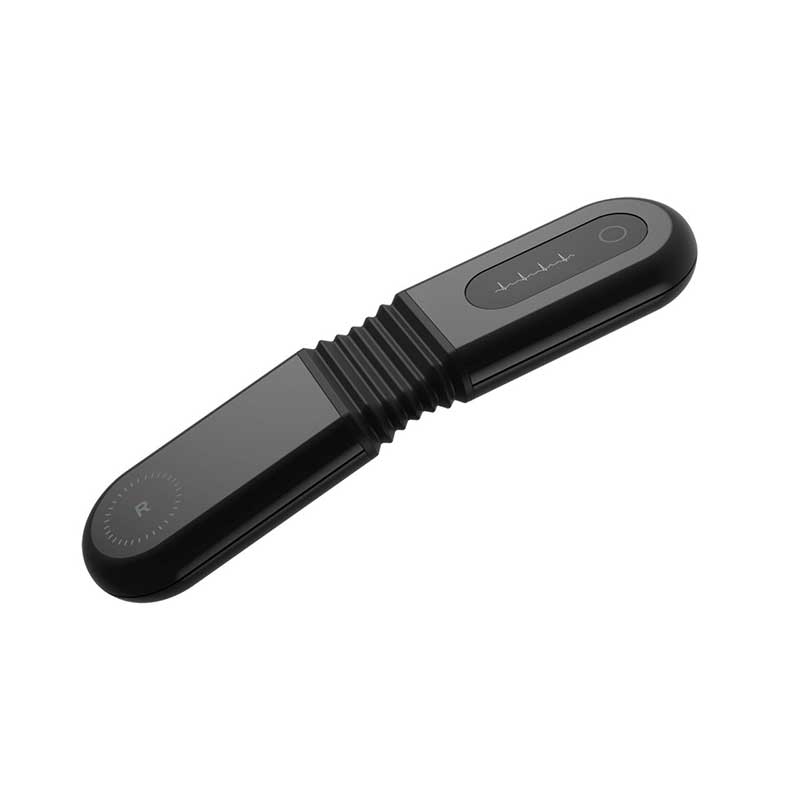

The LEPU Medical ER1-LB ECG monitor is small and easy to carry. It captures a single-lead electrocardiogram. Because it quickly checks heart activity, it's great for keeping an eye on irregular heartbeats and other cardiac issues. This small device is great for checking your health at home, in an emergency, or in the doctor's office.

Important Features

• Because it is compact and light, you can take it with you. You may easily use it at home, in an ambulance, or in a clinic for rapid checks. Its small size and ease of use make it easy for patients to keep an eye on their heart health.
• The LEPU ER1-LB is easy to use because it has a user-friendly interface. Putting the electrode on the chest or fingertips and pushing a button is frequently part of recording.
• The ER1-LB ECG recorder can monitor for 5 minutes to 72 hours and find heart problems such atrial fibrillation, atrioventricular block, and other signs that may not show up during short-term testing.
• The LEPU ER1-LB ECG with one lead is good for keeping an eye on basic heart activity. This can find arrhythmias, which are heart rhythms that are not normal, as well as other common cardiac disorders.
• The Clear 0.49" LCD shows ECG waveforms in real time. You can send the information to a smartphone via Bluetooth or to healthcare providers via cloud services so they can keep an eye on your heart from afar. This makes it easier to keep an eye on and talk to them over the phone in the long term.
• The LEPU ER1-LB's battery can be charged, so you don't have to plug it in to use it. This device keeps ECG data so you can keep an eye on your heart health over time. You may take the device with you wherever because it is strong and portable.

What it's for

• With the correct tools, you can keep an eye on patients from home. It lets doctors talk to patients from a distance, which is especially helpful for heart patients who live in rural areas or don't have access to good medical care.
• Use in hospitals and clinics: cardiology tests.
• Emergency Use: For paramedics and other emergency workers to quickly check heart function on the scene.

ViHealth is a mobile application designed to work with Lepu Medical (Viatom) devices, enabling users to collect, view, and store health data (such as pulse rate or SpO₂) via Bluetooth. It allows real-time monitoring, analysis of historical data, and sharing of reports with healthcare professionals or family members. The app can be downloaded from Google Play or the App Store.

Details about the technology

• How to measure: electrode pads
• Lead: single lead; Input impedance: 10MΩ, 10Hz 60 dB CMRR
• Response to frequency: 0.67–40 Hz
• Sample rate: 250 Hz
• Memory: Up to 10 readings; 16-bit sampling accuracy

Source of power

• Rechargeable lithium battery
• 3.8V DC, 240mAh
• The battery lasts for 72 hours.
• Charged in two hours

Size: 100 × 23 × 10 mm
Weight: 20 g (with battery)
Protection: Type BF, IP22
Software compatibility: Free ViHealth App and AI ECG analysis program for monitoring ECGs in real time at home

The LEPU ER1-LB single-lead ECG monitor is small, easy to use, and works well. It is helpful for quickly checking heart activity to find any problems, especially for people who need to be watched regularly outside of a hospital or professional setting.

Includes:

• Tool for monitoring

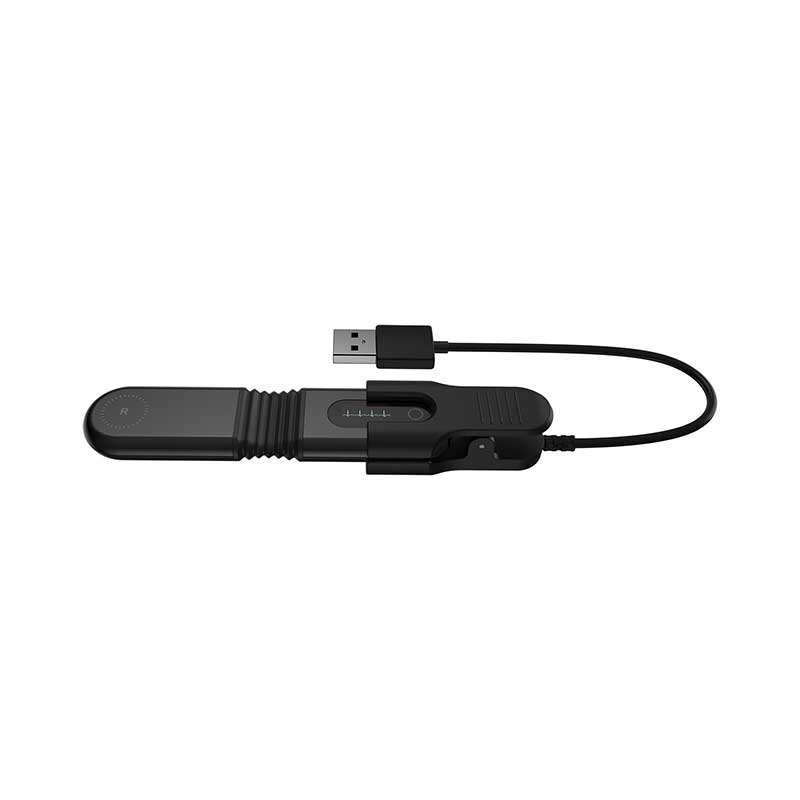

• Charger cord
• 10 disposable ECG electrodes with 3.5 mm tips
• Manual in several languages
