Portable ECG Monitor PC-80B (CE, FDA)

Portable ECG Monitor PC-80B (CE, FDA)

Portable ECG Monitor PC-80B (CE, FDA)

  • $95.00

  • FDA-approved & CE-certified.
  • Data transfer via USB or Bluetooth
  • 2.8-inch color LCD screen
  • Rapid (30 sec.) or continuous measurement modes

The PC-80B is a small, medical-grade ECG monitor that can measure and record ECG waveforms and average heart rate in humans. It is perfect for home usage, doctors, clinics, caretakers, and healthcare facilities because it is small enough to fit in the palm of your hand and is easy to use. It is simple to use and gives findings in only 30 seconds while precisely evaluating 17 different types of ECG waveforms.

It has a built-in Bluetooth module that lets you send data in real time through an app. This color handheld ECG monitor has a single channel and a lot of capabilities. It also lets you easily send data to your computer, smartphone, or tablet whenever you need to.

Main Features

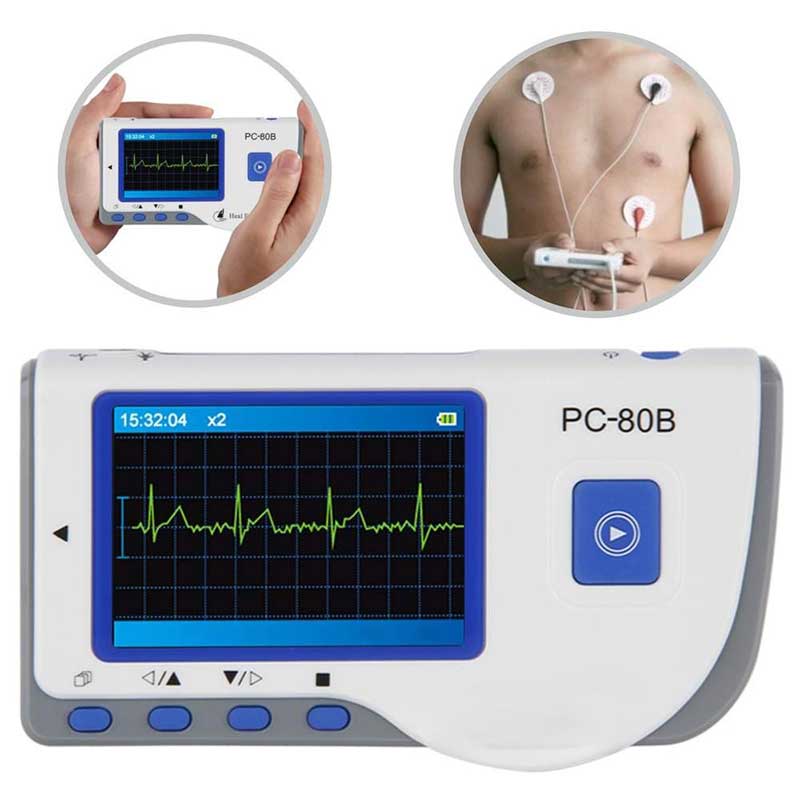

  • Multiple measuring methods: Palm, leg, chest, or lead wire (optional 3-lead ECG cable)
  • Quick and correct: Shows results in 30 seconds or less with 17 predefined ECG waveform analysis and a heart rate display
  • Display that is easy to read: 2.8-inch color LCD panel that shows the ECG waveform in real time
  • A lot of storage space: Keeps up to 2,700 rapid measurement records or 22.5 hours of data without stopping
  • Wireless connectivity: The free Vihealth app (for Android and iOS) lets you connect wirelessly via Bluetooth so you can see and save your ECG in real time. Medical personnel can obtain data from afar
  • Small and easy to use: Small enough to fit in your pocket for daily checkups and easy to use anywhere

Details About the Technology

  • Display Mode: 2.8-inch color LCD screen
  • Measuring Mode: One channel
  • ECG Bandwidth: 1 Hz to 40 Hz
  • Internal Noise Level: ≤30 µVp-p
  • Heart Rate Range: 30 to 240 beats per minute
  • Heart Rate Accuracy: ±2 bpm or ±2%, whichever is higher
  • Display Scale: 5 mm/mV ±10%
  • Common-Mode Rejection Ratio (CMRR): ≥60 dB
  • Waveform Sweeping Speed: 20 mm/s ±10%
  • Time to Measure: 30 seconds for quick or continuous measurement
  • Results: 17 types
  • Data Storage: Up to 1,200 records or 10 hours
  • Auto Power-Off: 35 seconds ±5 seconds (when not in use)
  • Size: 125 mm long, 70 mm wide, and 21.5 mm high
  • Weight: 106 g (with two AAA batteries)
  • Power Source: 2 AAA alkaline batteries

Includes

  • 1 × Portable ECG Monitor
  • 1 × USB data cord
  • 1 × Carrying pouch
  • 1 × Instruction manual
