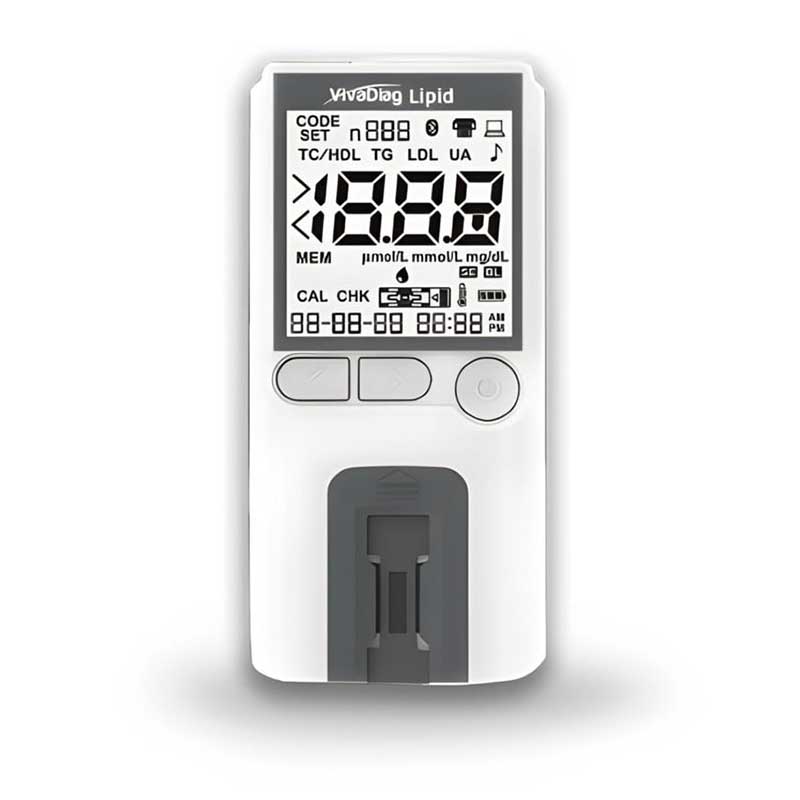

VivaDiag Lipid Cholesterol Testing System

VivaDiag Lipid Cholesterol Testing System

VivaDiag Lipid Cholesterol Testing System

  • Brand:VivaChek
  • Product Code:LP-101
  • Ships in:1-2 days

  • $155.00

  • Complete lipid profile: TC, HDL, TG, calculated LDL & TC/HDL ratio
  • Fast results in under 2 minutes
  • Small blood sample required (as low as 25 μL)
  • Large, clear display for easy result reading

VivaDiag Cholesterol and Triglyceride Meter is designed for the quantitative determination of lipid parameters from capillary or venous whole blood, plasma, and serum. This device stands out with clinically validated accuracy, and only 25 μL of blood sample is required to measure and calculate all 5 parameters at once – significantly less than with similar devices from other manufacturers.

Test results are provided in less than two minutes. The device memory allows you to store up to 200 records for later review.

The following lipid (cholesterol) test results that can be determined using this device:

  • TC (Total Cholesterol) – the total amount of cholesterol in the blood, including all cholesterol fractions. This is the main indicator used to assess the risk of cardiovascular disease.
  • TG (Triglycerides) – fats present in the blood that store energy. Elevated levels are associated with a higher risk of heart disease and metabolic disorders.
  • HDL (High-Density Lipoprotein) – also known as “good” cholesterol. It helps remove excess cholesterol from blood vessels and reduces the risk of atherosclerosis.
  • LDL (Low-Density Lipoprotein) – also known as “bad” cholesterol. Excessive LDL levels can accumulate in blood vessel walls and increase the risk of cardiovascular disease.
  • TC/HDL – the ratio of total cholesterol to HDL, used to assess overall heart disease risk. The lower this ratio, the lower the risk is considered to be.

How to use VivaDiag Cholesterol Testing device

Meter Specifications

Meter dimensions 142 mm × 70 mm × 27 mm
Display size 50 mm × 50 mm (1.97″ × 1.97″)
Power supply 3 × AAA (LR03) batteries or Mini USB
Weight 130 g (without batteries)
Battery life Up to 360 hours
Automatic shut-off After 5 minutes of inactivity
Storage conditions –10 °C to 60 °C; ≤ 90% RH
Memory capacity 200 records


Test Strip Specifications

Test principle Reflectance photometry
Test duration ≤ 2 minutes
Measurement units mg/dL, mmol/L
Sample type Whole blood, plasma, serum
Sample volume 10 μL (single test); 25 μL (3-in-1 test)
Operating conditions 15–40 °C (59–104 °F); ≤ 90% RH; altitude ≤ 2000 m
Measurement ranges TC: 100–500 mg/dL (2.59–12.93 mmol/L; 1 mmol/L = 38.66 mg/dL)
HDL: 15–120 mg/dL (0.39–3.10 mmol/L; 1 mmol/L = 38.66 mg/dL)
TG: 45–650 mg/dL (0.51–7.34 mmol/L; 1 mmol/L = 88.6 mg/dL)


Contents of measuring device set:

  • Meter device – reads the test strips and displays TC, HDL, TG, calculated LDL, and the TC/HDL ratio.
  • AAA batteries – the meter is powered by three AAA (1.5 V) batteries.
  • Carrying case – for convenient storage and transport.
  • Control test strips (2 pcs.) – used to verify proper meter operation using a pre-calibrated value.
  • User manual – instructions for using the meter (in English).

Contents of testing strips set:

  • Test strips (25 pcs.). Measure TC, HDL, TG values, calculate LDL and the TC/HDL ratio.
  • Code chip (1 pc.). Automatically calibrates the meter when inserted.
  • Capillary blood pipettes (25 pcs.). Intended for finger blood collection (25 μL required for the 3-in-1 test).
  • User manual – instructions for using the test strips (in English).

Test strips sold separately. The package contains 25 test strips for measuring all five parameters: 5 containers of 5 strips each.

Before performing the test, carefully read the instructions and familiarize yourself with all components of the VivaDiag cholesterol (lipid) measurement system.

To ensure accurate results, always use the code chip provided in each test strip package for automatic calibration.

Warranty: 24 months.
