The first cardiac electrical signals were recorded in 1887 by Augustus Weller using a mercury capillary electrometer. In 1901, Einthoven, known as the father of electrocardiography, developed the first string galvanometer electrocardiograph, which became the foundation for modern ECGs. Despite its simplicity, Einthoven’s device excelled in accuracy and was first used clinically in 1906, even requiring transtelephonic transmission to the clinic at the University of Leiden. Since then, ECGs have become crucial in diagnosing and managing a range of heart diseases due to their simplicity, availability, and reliability.
Traditionally, a 12-lead ECG interpreted by a cardiologist has been the standard for arrhythmia diagnosis. However, in recent years, single-lead handheld ECG devices and smartphone-based ECG monitors have transformed accessibility and empowered patients to record their own ECGs. With smartphones now serving as ECG monitors, anyone can use this technology, greatly expanding its reach. Over a century after Einthoven’s work, smartphone-based ECGs are redefining arrhythmia diagnosis and monitoring in the telemedicine era.
A variety of handheld ECG devices exist, producing diagnostic-quality lead I single-lead ECGs. Most of these devices have automated algorithms to diagnose atrial fibrillation (AF), offering over 90% sensitivity and specificity compared to pulse palpation. Although P waves may not always be visible on single-lead ECGs, their advantages—such as ease of use, accessibility, and patient acceptance—often outweigh this limitation. Typically, these devices record a 30-second ECG and have been extensively used in AF screening programs.

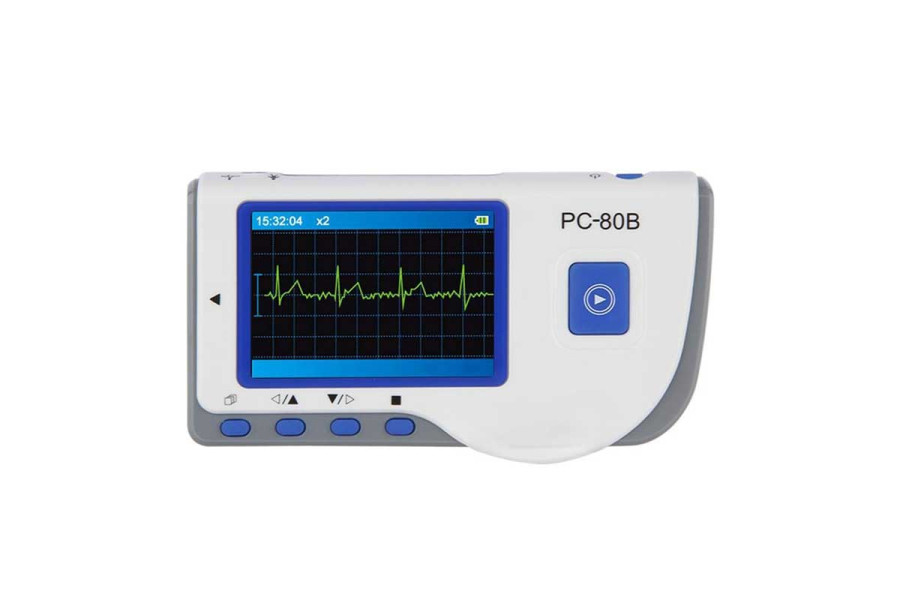

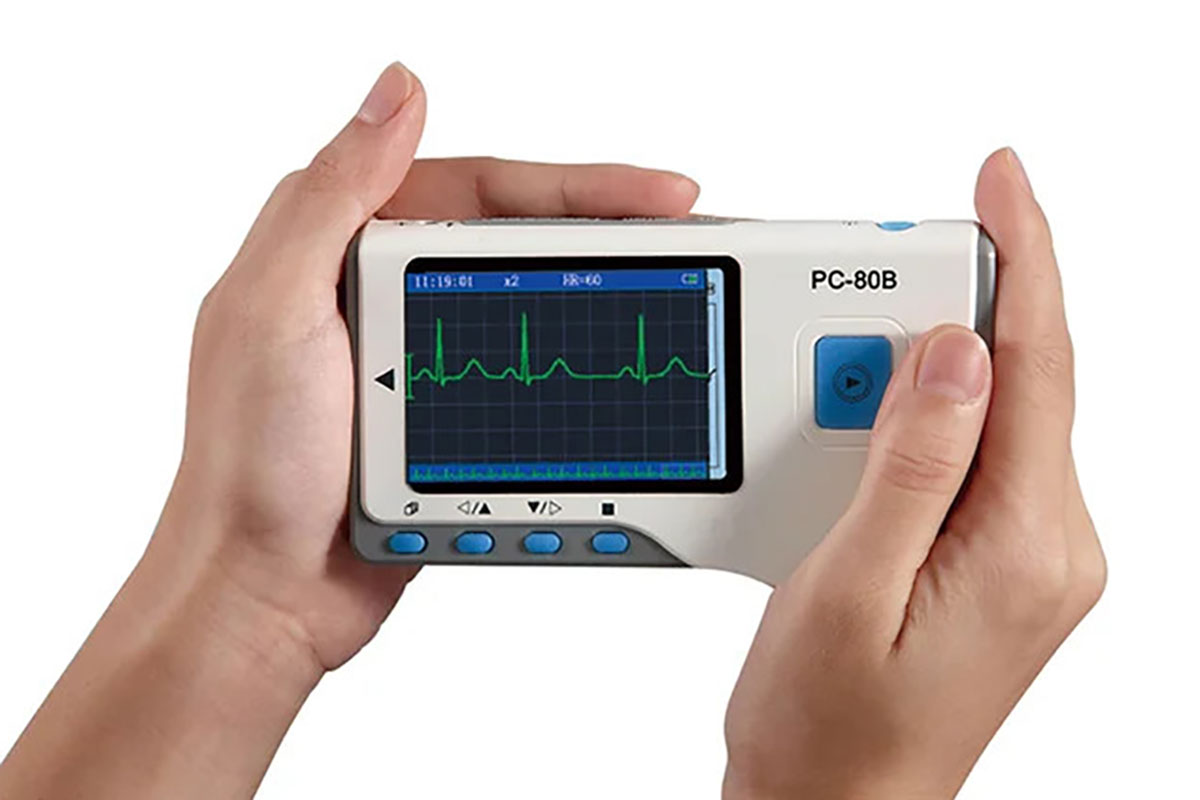

The Lepu Medical PC-80B Portable ECG Monitor is a compact, FDA-approved and CE-marked device designed for convenient heart monitoring at home or in clinical settings. It provides a 30-second ECG tracing and displays a message indicating possible AF using an RR interval-based algorithm. The device stores up to 1,200 recordings or 10 hours of continuous data, which can be transferred to a PC or smartphone via USB or Bluetooth for further analysis using the Vihealth app. While highly sensitive (98%), its specificity is below 80% compared with 12-lead ECGs, meaning a 12-lead ECG may be needed to confirm positive findings.
The more advanced PCECG-500 by the same manufacturer is a compact, portable 12-lead resting ECG monitor designed for clinical and emergency use. It features a 4.46-inch color touchscreen and supports simultaneous acquisition and display of 6 or 12-lead waveforms. The device offers four sampling modes—pre-sampling, real-time, periodic, and triggered—and includes the Glasgow ECG analysis algorithm for automated interpretation. With both automatic and R-R modes, it supports pacing detection and marking, as well as anti-drift and EMG interference filtering. Data can be transferred via email or Wi-Fi, and the built-in rechargeable battery provides over 24 hours of continuous operation. Weighing approximately 250 grams, the PCECG-500 is ideal for bedside monitoring and mobile diagnostics.
Overall, these handheld ECG devices, with varying designs and capabilities, have expanded AF screening and diagnosis, particularly in primary care settings and remote monitoring. However, there‘s another major group of single-lead ECG which provide real-time ECG readings, often with automated algorithms to detect irregularities like atrial fibrillation.
Smartphones, carried by billions globally, have spurred the development of smartphone-based single-lead ECG devices for arrhythmia diagnosis. These devices, consisting of an external case and app, allow users to generate and store ECG rhythm strips from their phones. The first FDA-cleared over-the-counter device, ECG Check, appeared in 2013 and uses Bluetooth to connect with the phone, displaying ECG results in seconds. Studies have shown its reliability compared to standard 12-lead ECGs and high user satisfaction across populations, including children.
Atrial fibrillation (AF), a common arrhythmia linked to stroke and other complications, is often asymptomatic, making early detection crucial. Screening for silent AF can reduce stroke risk through timely anticoagulation. Traditional pulse checks are underused in primary care, but smartphone-based ECG devices have made AF screening more feasible and cost-effective.
Community screening in United States and Canada using smartphone ECGs has proved feasible and accurate, finding silent AF in 0.8% of participants. Device sensitivity and specificity are generally high but vary by setting and user ability to record quality signals. Automated AF detection algorithms require clear signals to minimize false positives and reduce physician review workload. Testing device performance in the intended screening setting is essential to optimize results.
Smartphone-based and handheld ECG devices are limited by their intermittent use, which may miss asymptomatic arrhythmias like paroxysmal atrial fibrillation (AF). Continuous monitoring is more effective for detecting AF recurrences, although the clinical significance of brief episodes remains unclear. Continuous monitoring can be done via noninvasive tools such as prolonged Holter monitors or wearable patches, which improve AF detection but may cause skin irritation and generate large data volumes.
Wearable technology offers a promising alternative by providing continuous ECG monitoring with automated AF detection. The integration of smartphone ECG applications with centralized databases accessible to physicians could improve diagnosis, monitoring, and treatment efficiency. Such advancements could revolutionize cardiac care by making monitoring more cost-effective and accessible. However, managing the vast amount of data generated by these devices remains a challenge. Developing strategies to handle this data will be crucial for optimizing tele-ECG technology. Ultimately, these innovations hold great potential to enhance patient outcomes and reduce healthcare costs.
