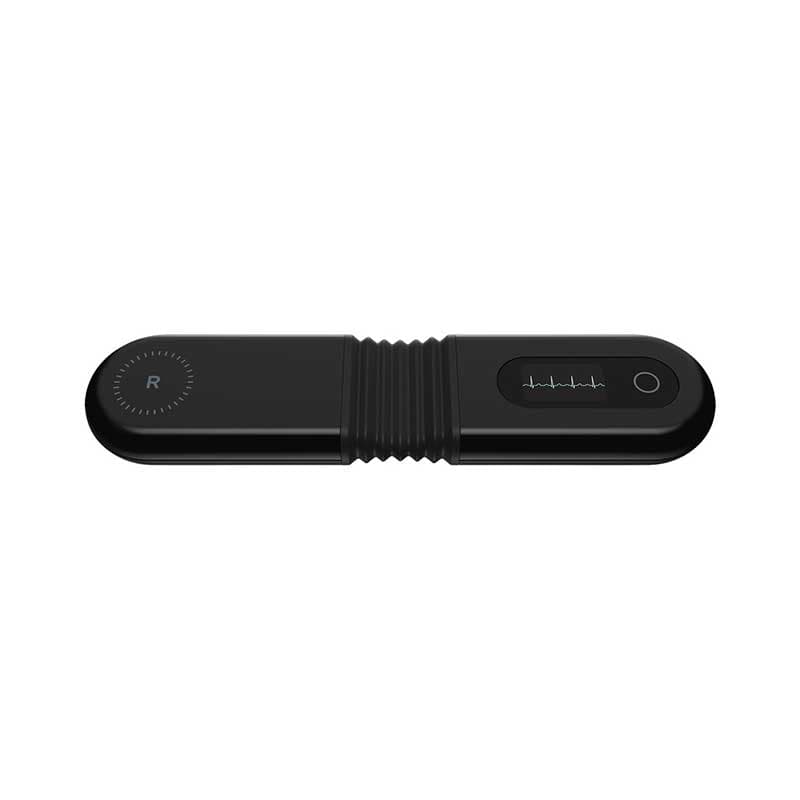

ER1-LB Single-Lead Holter ECG Monitor
Price:$325
- Ships in 2-3 days
- Delivery within 15-20 days
Key Features
- Compact and lightweight, easy to carry and use in various settings
- Efficient tool for single-lead ECG monitoring and analysis
- ECG monitoring and recording for up to 72 hours
- Wireless Data Transfer to healthcare providers
The LEPU Medical ER1-LB is a compact and lightweight single-lead ECG monitor designed for convenient long-term monitoring of heart activity at home, in clinics, or during ambulatory care. It records ECG continuously for periods ranging from 5 minutes up to 72 hours, helping detect intermittent arrhythmias such as atrial fibrillation and other abnormal heart rhythms. The integrated LCD displays ECG information, while Bluetooth connectivity allows recorded data to be transferred to the ViHealth mobile application for viewing, storage, and sharing. With a rechargeable battery providing up to 72 hours of operation and a weight of only 20 g, the ER1-LB is particularly suitable for portable and extended ECG monitoring. The device supports electrode-pad measurement and can be used together with compatible ECG analysis software for further assessment.
Specifications
Model | LEPU Medical ER1-LB |
Device type | Portable single-lead ECG monitor |
ECG lead | Single lead |
Measurement method | Disposable electrode pads |
Monitoring duration | 5 minutes – 72 hours |
Display | 0.49″ LCD |
Frequency response | 0.67–40 Hz |
Sampling rate | 250 Hz |
Sampling accuracy | 16-bit |
Input impedance | 10 MΩ |
CMRR | 60 dB at 10 Hz |
Memory | Up to 10 recordings |
Connectivity | Bluetooth |
Compatible software | ViHealth App / compatible AI ECG analysis software |
Battery | Rechargeable lithium battery |
Battery capacity | 3.8 V DC, 240 mAh |
Operating time | Up to 72 hours |
Charging time | Approx. 2 hours |
Dimensions | 100 × 23 × 10 mm |
Weight | 20 g including battery |
Applied part classification | Type BF |
Ingress protection | IP22 |
Package contents | ECG monitor, charging cable, 10 disposable ECG electrodes (3.5 mm), multilingual user manual |
