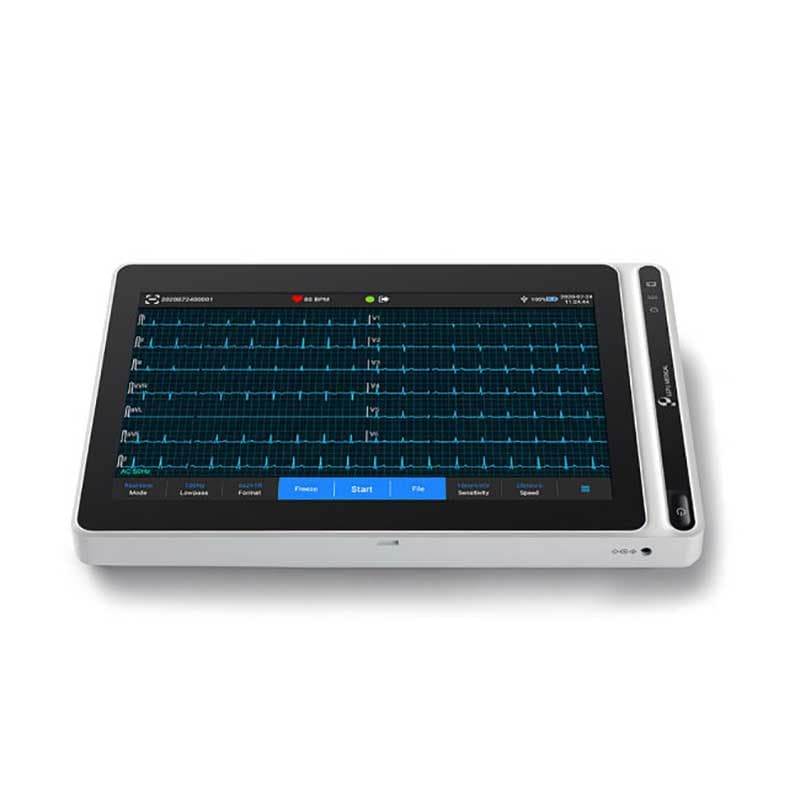

NeoECG S120 – Tablet Style 12 Lead ECG
Price:$1,488$1,265
- Ships in 2-3 days
Key Features
7-inch touch screen with a resolution of 1024 x 600
Glasgow analysis algorithm
9 and 12-lead ECG waveforms
Lightweight, easy to operate via the touch screen
Store, preview, review, edit, export, upload, print, and search patient data
The NeoECG S120 is a lightweight, portable medical ECG device in tablet design weighing less than 1 kg. It enables recording and analysis the heart's electrical activity, allowing for quick diagnosis of cardiac conditions in various settings, including ambulances, remote clinics, and home monitoring. It enhances real-time heart monitoring, early detection of arrhythmias or heart attacks, and seamless data transmission for telemedicine and emergency use.
The device features a 7-inch high-resolution color touch screen and an integrated camera for convenient scanning of patient data. With WiFi connectivity, it can be flexibly connected and operated using both an external DC power supply and an internal rechargeable lithium battery. The device offers an impressive battery life of up to 10 hours.
The NeoECG S120 device supports synchronous acquisition and display of 9 and 12-lead ECG waveforms and provides automatic pacing detection and marking for precise analysis. Patient information input can be input via a virtual alphanumeric keyboard or barcode scanning. With versatile output options, files can be saved in various formats such as Carewell EKG, PDF, BMP, HL7, DICOM, and SCP.
Product Summary
ECG Leads and Heart Rate Detection: Simultaneous acquisition and display of the 6/9/12-lead waveforms, as well as automatic heart rate detection. Ability to Freeze the ECG waveform on the screen.
Sampling Modes: It offers four sampling modes: pre-sampling, real-time sampling, periodic sampling, and trigger sampling.
Automatic Functions: Supports automatic pacing detection and marking, auto RR analysis, heart rate variability (HRV) analysis, medication testing, and ECG event mode.
Data Management: The device can store, preview, review, edit, and upload patient data through wireless transmission via Wi-Fi and mobile networks. Patient data can also be exported to a USB flash drive via a USB connector or printed via laser printer.
Data Export Formats: Files can be exported in multiple formats, including Carewell ECG, PDF, BMP, HL7, DICOM, and SCP.
User Input: Patient information can be entered using a virtual keyboard or by scanning barcodes.
Security: Supports the online and offline user login permission control, use password or account & password authentication to use the device.
Power Supply: Operates on an external DC power supply and includes a built-in rechargeable lithium battery. Up to 10 hours of rechargable lithium battery life.
AI-ECG Platform Support: AI-powered diagnosis leverages advanced algorithms to analyze medical data with high accuracy, enabling early detection of diseases (optional).
Technical Specifications
Display | 7-inch colour touch screen |
Resolution | 1024 x 600 pixels |
Size (L x W x H) | 197 x 112.4 x 26 mm |
Weight | 0.8 kg |
Power Supply | DC power supply or rechargeable lithium battery |
Sampling Rate | 32,000 dots/s |
Leads | 9-lead, 12-lead (simultaneous acquisition & analysis) |
Analysis Algorithm | Glasgow |
HR Range | 30 - 300 bpm |
Accuracy | + 1 |
Input Impedance | ≥ 100 MΩ (10Hz) |
Input Loop Current | < 10 nA |
Calibration Voltage | 1 mV +2 % |
Depolarization Voltage | ± 900 mV, ± 5 % |
System Noise | ≤ 12.5 μV |
Amplitude Quantification | 0.95 μV / LSB |
A/D Conversion | 24-bit |
Common Mode Rejection Ratio (CMRR) | ≥ 140 dB (AC filter on) / ≥ 120 dB (AC filter off) |
Time Constant | ≥ 5 s |
Sensitivity | Auto, 2.5 mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV, 40 mm/mV |
Printing Speed | 5, 6.25, 10, 12.5, 25, 50 mm/s, with less than ±3% error |
Frequency Response | 0.01 Hz ~ 350 Hz (+0.4dB - 3.0 dB) |
Filters | - AC Filter 50Hz, 60Hz, Off |
Electrode Polarization Recovery Time | < 10 s |
Pace Pulse Display | Display ECG signal for pacing pulses with an amplitude of ±2mV to ±700mV, a duration of 0.1 ms to 2.0 ms, a rise time of less than 100 μs, and a frequency of 100/min |
The NeoECG S120 is designed to provide healthcare professionals with a reliable and efficient tool for cardiac monitoring, combining advanced features with user-friendly operation. AI-powered analysis in ECG enhances accuracy, speed, and early detection of cardiac conditions by automatically identifying abnormalities, reducing human error, and enabling real-time, data-driven decision-making for better patient outcomes.
Package contents
1 × 7-inch ECG tablet
1 × ECG lead wire
1 × Reusable electrodes set (chest & limb)
1 × Power cable
1 × English manual
