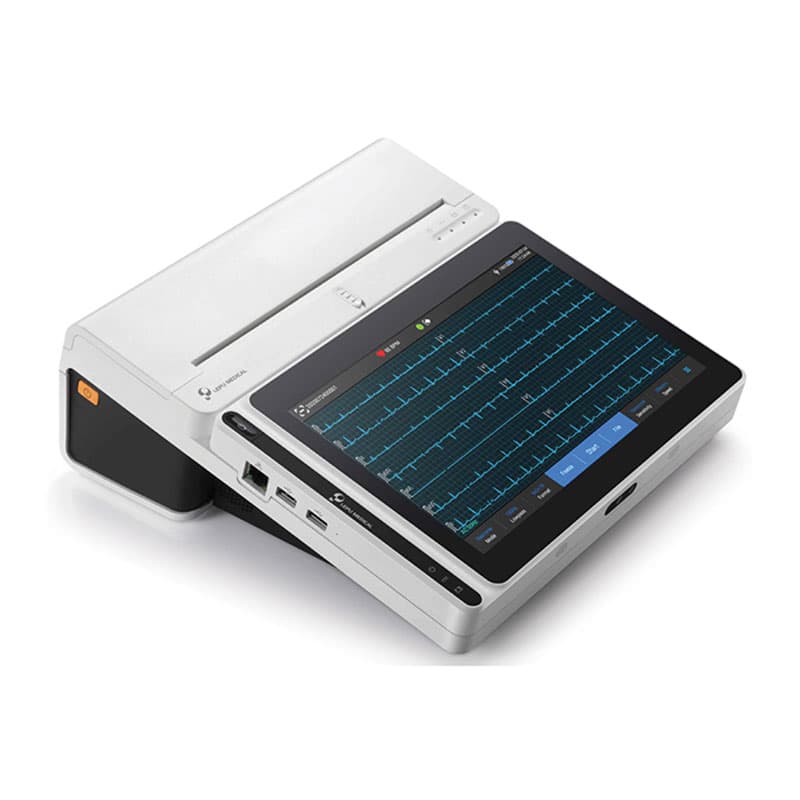

Lepu Medical NeoECG T180
Price:$1,695
- Ships in 2-3 days
- Delivery within 20 days
Key Features
12-lead simultaneous ECG acquisition
Glasgow analysis algorithm
High-resolution color touchscreen
Compact, lightweight and portable design
NeoECG T180 – a modern, compact, and reliable medical device designed for recording and analysing the electrical activity of the heart. The device features high recording quality, ease of use, and advanced functions that enable accurate and rapid examinations in hospitals, clinics, and outpatient facilities.
Product Summary
- Multi-channel recording: clear 12- or 18-lead ECG signal, allowing assessment of rhythm, conduction, and other pathological signs.
- Automatic analysis: the integrated system helps to quickly determine key parameters and possible abnormalities (the final diagnosis is confirmed by a specialist).
- Real-time monitoring: a large colour display allows ECG waveforms to be monitored directly and settings to be adjusted using a convenient menu.
- Printing and data transfer: built-in thermal printer and the ability to transfer data to a computer or hospital system.
- Mobility and battery: a lightweight, ergonomic housing and reliable battery ensure operation without a direct power supply.
- Compliance with standards: the device complies with modern medical requirements and is cost-effective for everyday cardiology practice.
NeoECG T180 – an accurate, convenient, and versatile solution for clinical situations: at the patient’s bedside, for outpatient examinations, or during home visits.
Technical Specification
| Display | 10.1" (25.6 cm) colour touchscreen |
| Resolution | 1024 x 600 pixels |
| Dimensions (L x W x H) | 197 x 112.4 x 26 mm |
| Weight | 2.5 kg |
| Power supply | Direct current (DC) or rechargeable lithium battery |
| Sampling rate | 32,000 samples/s |
| ECG leads | 9 and 12 leads (synchronous recording and analysis) |
| Analysis algorithm | Glasgow |
| Heart rate range | 30 - 300 bpm ± 1 |
| Input impedance | ≥ 100 MΩ (10Hz) |
| Input circuit current | < 10 nA |
| Calibration voltage | 1 mV +2 % |
| Polarisation voltage | ± 900 mV, ± 5 % |
| System noise | ≤ 12.5 μV |
| Amplitude quantisation | 0.95 μV / LSB |
| A/D conversion (resolution) | 24-bit |
| Common-mode rejection ratio (CMRR) | ≥ 140 dB (with AC filter on), ≥ 120 dB (with AC filter off) |
| Time constant | ≥ 5 s |
| Sensitivity | Auto, 2.5 mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV, 40 mm/mV Accuracy ± 5 % |
| Printing speed | 5, 6.25, 10, 12.5, 25, 50 mm/s, with accuracy ±3% |
| Frequency response | 0.01 Hz ~ 350 Hz (+0.4dB - 3.0 dB) |
| Filters | - AC Filter 50Hz, 60Hz, off - EMG Filter: 25Hz, 35Hz, 45Hz, off - ADS Filter: 0.01Hz, 0.05Hz, 0.32Hz, 0.67Hz - Low-pass filter: 75Hz, 100Hz, 150Hz, 300Hz, off |
| Electrode polarisation recovery time | < 10 |
| Pacemaker pulse display | For pacemaker pulses with amplitude from ±2mV to ±700mV: - Duration from 0.1 ms to 2.0 ms - Rise time up to 100 μs - Frequency 100/min |
NeoECG T180 is designed to provide healthcare professionals with a reliable and efficient tool for cardiac monitoring, combining advanced functions with convenient operation.
Artificial intelligence (AI)-powered ECG analysis improves accuracy, speed, and early detection of heart disease by automatically detecting abnormalities, reducing human error, and enabling real-time, data-driven decision-making for better patient outcomes.
Standard accessories: ECG tablet, printer-base, ECG cable, chest electrodes, limb electrodes, battery, power cable.
Warranty: 18 months
