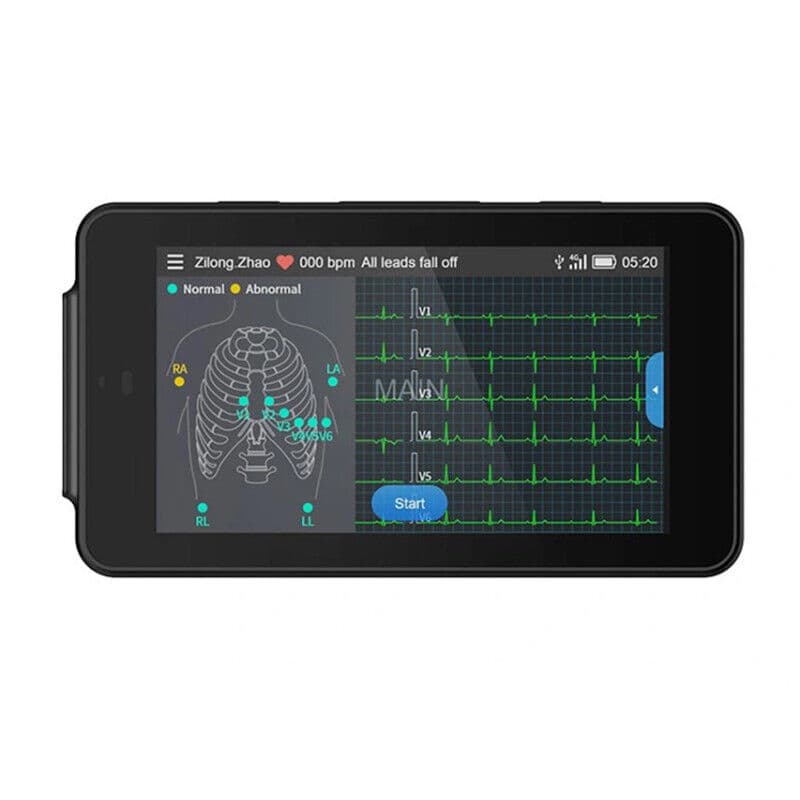

Portable 12-Lead ECG Monitor PCECG-500
20% OFF
Lepu Medical
Price:$1,170$935
In Stock
- Ships in 2-3 days
- Delivery within 20 days
Key Features
- 6 and 12-lead ECG wave registration
- Glasgow algorithm
- High-resolution 4.5-inch (11.4 cm) touchscreen
- Extremely lightweight and easy to use
Portable, lightweight and easy to use PCECG-500E ECG monitor from LEPU Medical provides collection, analysis, storage and transmission of 12-lead ECG information, which in combination with the Glasgow algorithm, ensures complete and immediate analysis. The device is a great choice for clinics, family doctors and emergency care. It can also be used at home for the daily monitoring of heart health.
Easy to use, light and portable. It only weighs 250 g, about the size of a smartphone.
Key Features
- 4.46-inch LCD color touch screen, portable design, small size and lightweight, easy to carry.
- Simultaneous acquisition and display of 6 and 12 lead waveforms and heart rate detection.
- Remote reporting, data transfer, printing via Wi-Fi transmission or E-mail.
- Four sampling modes: pre-sampling, real-time sampling, periodic sampling, and triggered sampling.
- Provides Glasgow conventional analysis algorithm to automatically analyze the acquired ECG waveforms and output measurement values and diagnostic results.
- Supports automatic mode and R-R mode, automatic pacing detection and marking.
- ADS (Anti-Drift System) and EMG (Electromyography) interference.
- HD camera
- Powered by external DC power or built-in rechargeable lithium battery which supports continuous working time >24 hours.
Technical Specifications
| Display | 4.46" colour LCD touchscreen, 480x854 pixels resolution |
| Method | Peak-peak detection |
| Measurement range | 30-300 bpm; ± 1 bpm |
| Leads | 6/12-lead synchronous acquisition and analysis |
| Sensitivity | 2.5, 5, 10, 20 mm/Mv; ± 5% |
| Input impedance | 50MO (10Hz) |
| Sampling rate | 2000 samples/sec |
| Modes | Pre-sampling, real-time sampling, periodic sampling, triggered sampling |
| CMRR | 100dB (AC filter on) |
| Frequency response | 0.05Hz-150Hz+0.4dB(-3.0dB), 10Hz |
| Time constant | 3.2s |
| Filter | AC filter 50Hz, 60Hz, Off EMG (Electromyography) filter: 25Hz, 35Hz, 45Hz, Off ADS (Anti-Drift System) filter: 0.05Hz, 0.32Hz, 0.67Hz Lowpass filter: 75Hz, 100Hz, 150Hz, Off |
| Speed | 5, 6.25, 10, 12.5, 25, 50 mm/s; ±3% |
| Power supply | Built-in rechargeable lithium-ion battery, 3.8V 6000mAh. Charging time: 8 hours |
| Dimensions | 134×74×17 mm - 250 g (including battery) |
Package Contents:
- 1 ECG lead wire
- U-Disk (type C & USB port)
- Disposable adult ECG electrodes (2 sets of 10 pcs)
- USB cable
- Rechargeable lithium-ion battery
- Multilingual manual
